FPGA Kits / Xilinx Virtex-6 FPGA Board

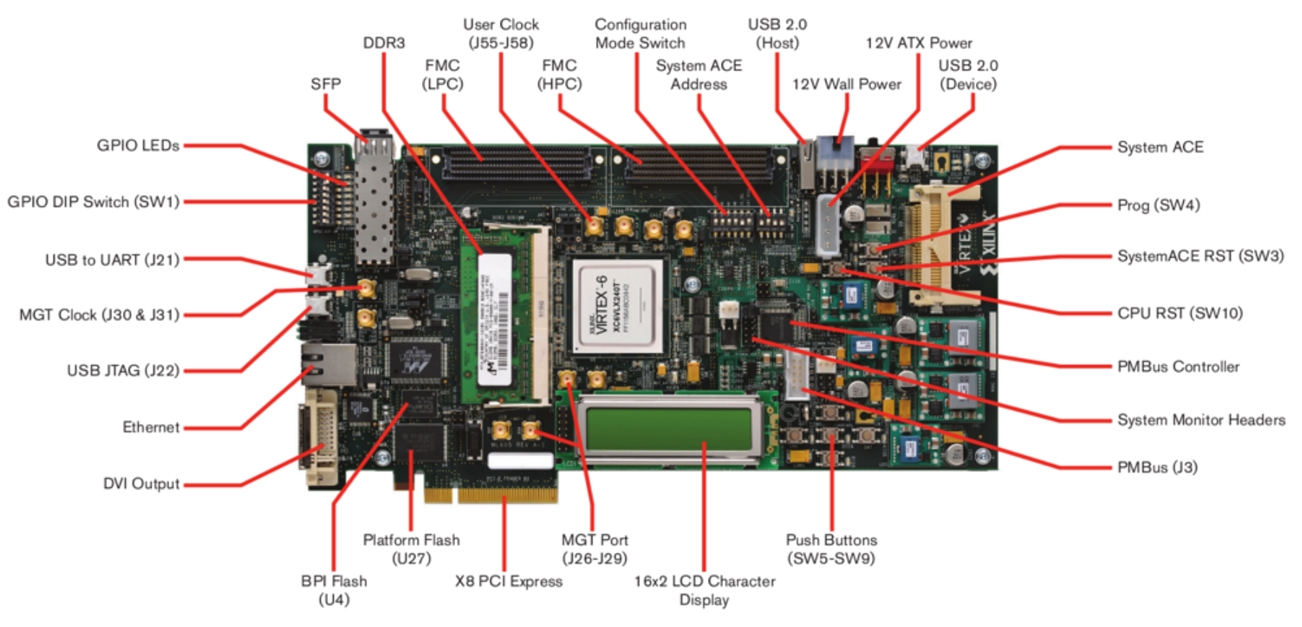

Technical Specifications :
- Onboard configuration circuitry (USB to JTAG)
- 16MB Platform Flash XL
- 32MB Parallel (BPI) Flash
- System ACE CF with 2GB Compact FLASH (CF) Card
- Communications and Networking
- 10/100/1000 Tri-Speed Ethernet (GMII, RGMII, SGMII, MII)
- SFP transceiver connector
- GTX port (TX, RX) with four SMA connectors
- USB To UART Bridge
- USB Host Port and USB Peripheral Port
- PCI Express x8 Edge Connector (card supports up to x4 Gen2 with Virtex-6 LX240T-1 silicon)
- Memory
- DDR3 SO-DIMM (512 MB)
- BPI Linear Flash (32 MB) (Also available for configuration)
- IIC EEPROM (8 Kb)
- Clocking
- 200 MHz Oscillator (Differential)
- 66 MHz Socketed Oscillator (Single-Ended)
- SMA Connectors for external clock (Differential)
- GTX Reference Clock port with 2 SMA connectors
- Input/Output and Expansion Ports
- 16x2 LCD character display
- DVI Output
- System Monitor
- User Push buttons (5), DIP switches (3), LEDs (13)
- User GPIO with two SMA connectors
- Two FMC Expansion Ports
- High Pin Count (HPC)
- Eight GTX Transceivers
- 160 SelectIOs
- Low Pin Count (LPC)
- One GTX Transceiver
- 68 SelectIOs
- Power
- 12V wall adapter or ATX
- Voltage and Current measurement capability of 2.5V, 1.5V, and 1.2V, 1.0V supplies
FPGA: XC6VLX240T-1FFG1156
