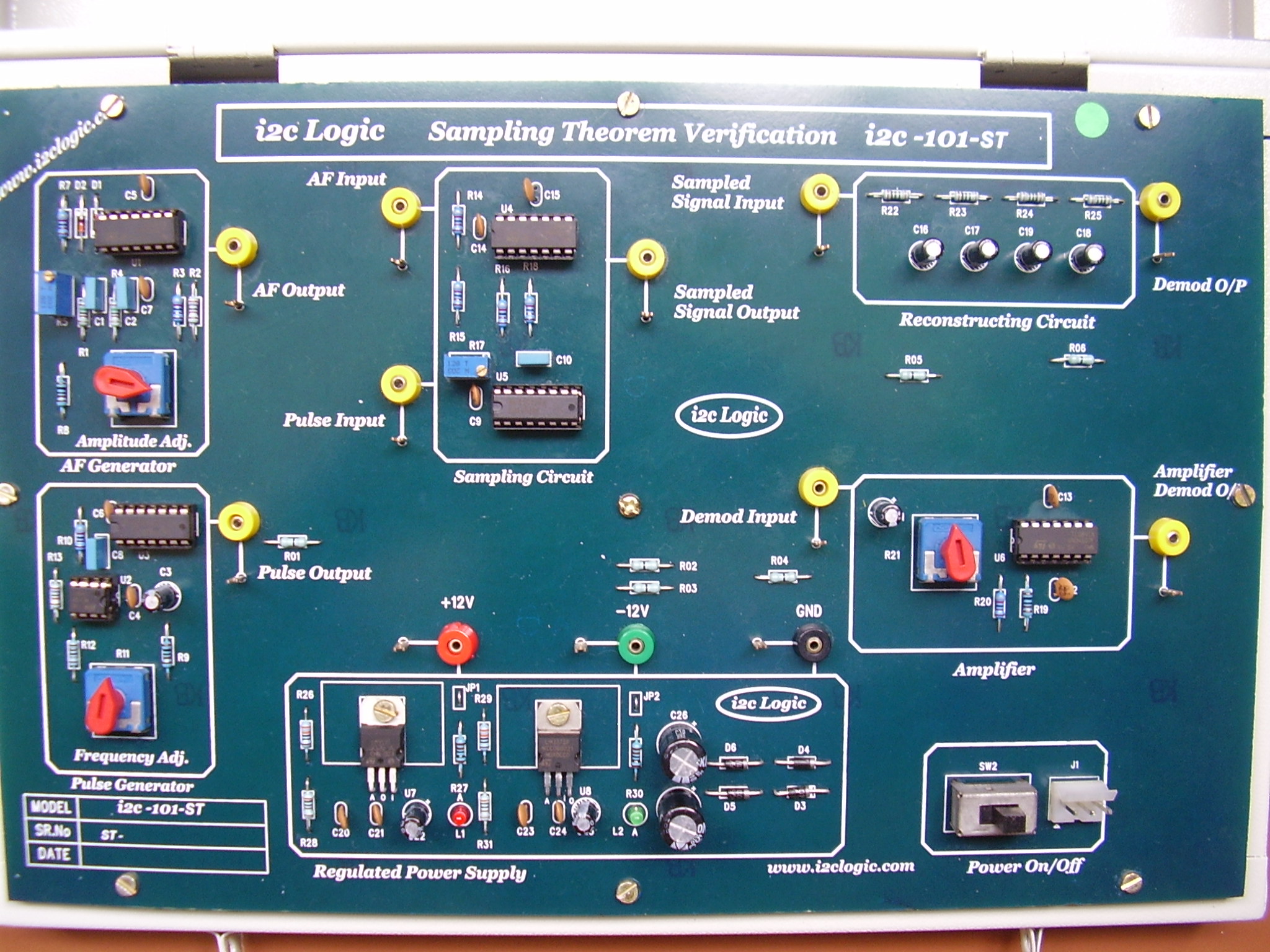

Communication Kits  /  Analog Sampling and Reconstructing Kit.


    Technical Specifications :
  • AG Generator
    • Provides sinewaveform output using TL084.
    • Provides sinewaveform outputof 100HZ.
  • Pluse Generator :
    • Carreir generation using IC555.
    • Frequency variable between from 600HZ -3.5KHZ
  • On-Board block features :
    • ST modulator circute using IC4052.
    • ST-demodulator using 3-pole LPF method.
  • Inter Connections
    • All interconnection made using 2mm banana patch cords.
    • Test points are provided analyze signals at various points.
    • Bare board tested glass epoxy SMOBC PCB is used.
