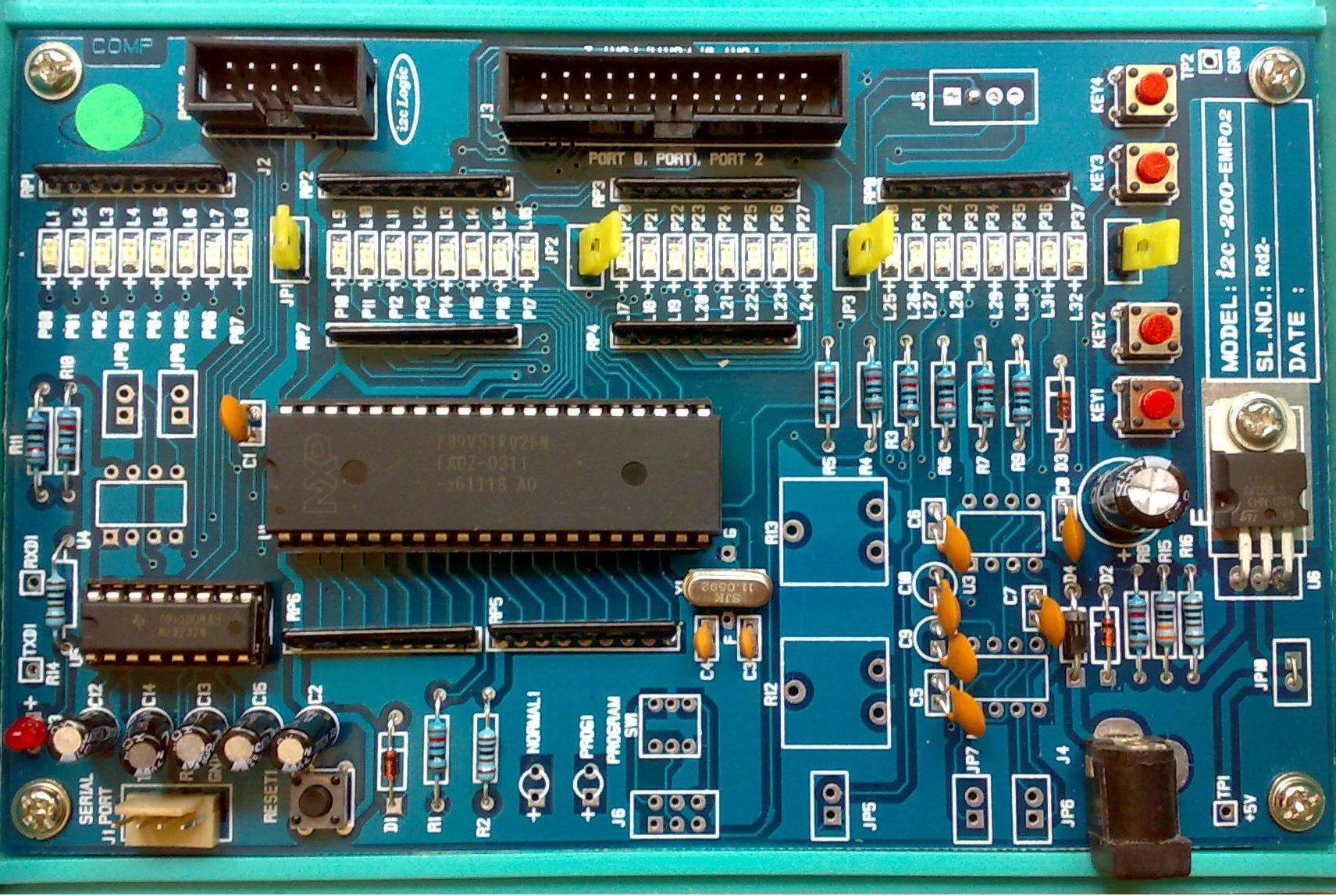

8051 Development Kit
8051 Kits / 8051 Development kit
Technical Specifications :
- CPU : Intel 8085 with 256 instruction and 3.07Mhz max clock rate for alpha 8085 system.
- ROM : EPROM 2764 with 4kbytes monitor at EPROM address 0000 to 07ff.
- RAM : Static RAM 6264 total 8kbytes address 6000 to 7fff.
- I/O ports : Provision for programmable I/O port device 8255 total 24 parallel I/O lines.
- Display : 6 digit , 1/2 “ , & 7segment LED display.
- Keyboard : 24 ‘Key total , 8 function keys , 16 hexa decimal keys.
- System clock rate : 6.144Mhz crsytal divided by 2 cycle time 0.33micro sec.
Interface :
- D/A converter
- Dual Slope/d converter
- Keyboard interface
- Elevator interface.
