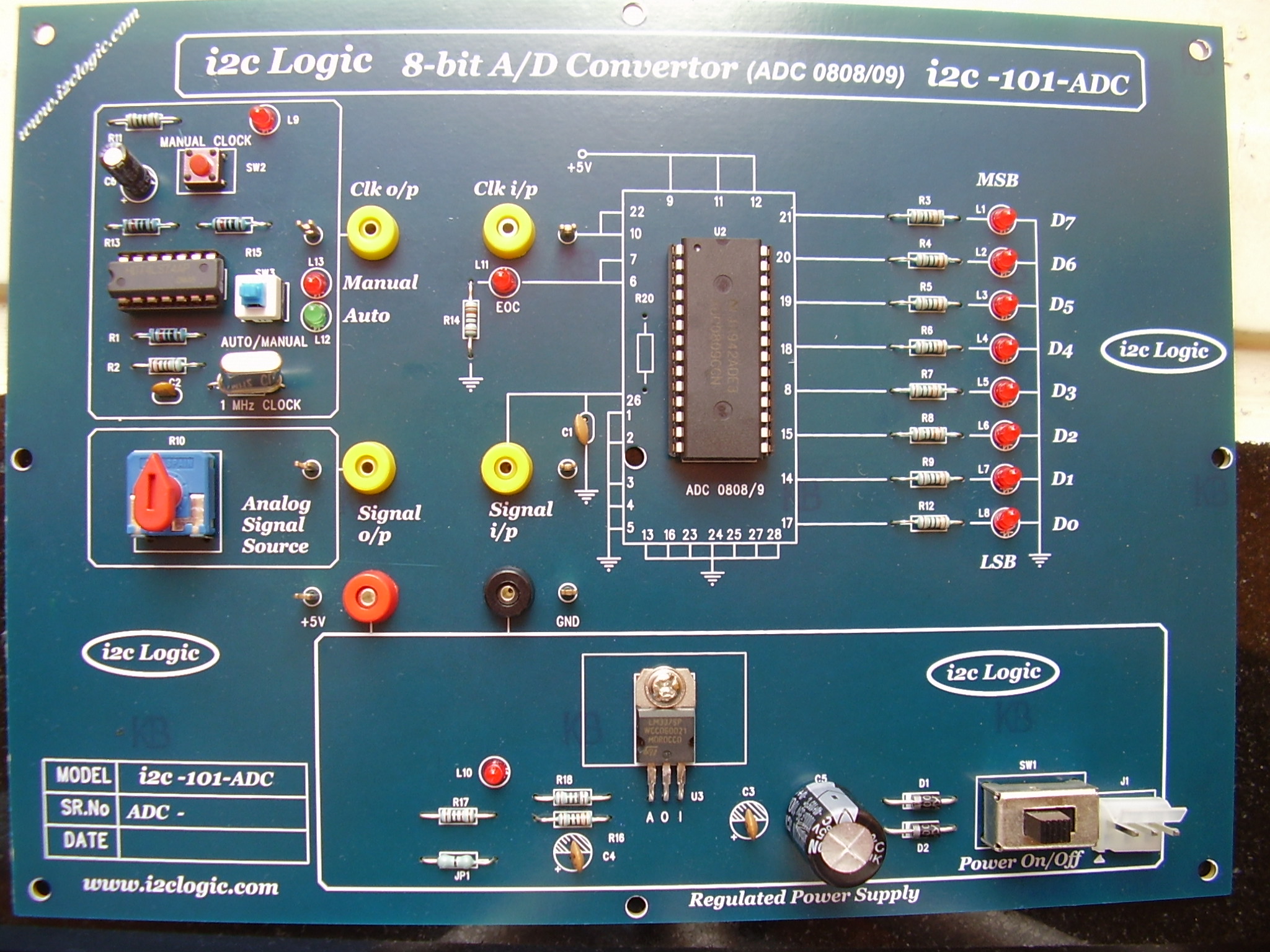

Communication Kits / ADC Modulation and Demodulation Kit.
Technical Specifications :
- Clock Generator
- Provides 1MHZ clock generator using IC7404.
- On-Board facility for clock in auto or manual mode.
- Signal Source Input
- Provides DC signal source input with amplitude adjustment.
- On-Board clock features
- Analog to digital convertion using IC ADC0808/0809.
- Digital data output with RED led indication.
- All interconnections are made using 2mm banana patch cords.
- Test points are provided to analyze signals various points.
